Rotary Grinder
Precision grinding system with rotary action for consistent particle size reduction and material preparation
Key Features
- Heavy-duty rotary mechanism
- Precision-machined grinding chamber
- Adjustable screen system
- Variable speed control
- Robust steel construction
- Integrated dust collection
- Safety interlocking system
- Easy maintenance access
Product Overview

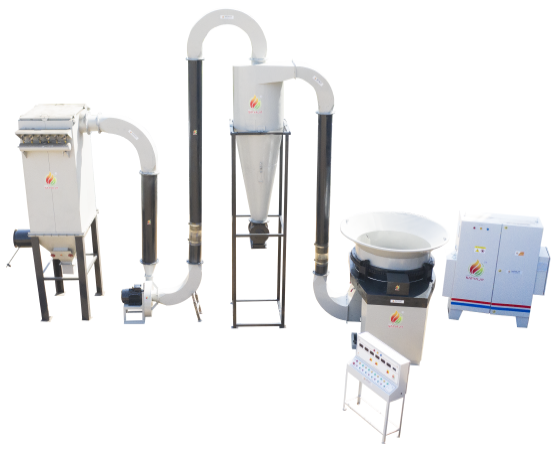

The Rotary Grinder is a sophisticated grinding system that utilizes precision rotary action to achieve consistent and uniform particle size reduction for various biomass materials. This advanced grinding system features a heavy-duty rotor equipped with specially designed grinding elements that deliver superior cutting and grinding performance. The machine's unique rotary mechanism ensures even material distribution and processing, resulting in uniform particle size output with minimal fines generation. Built with high-grade steel construction and precision-machined components, the Rotary Grinder provides exceptional durability and reliability in demanding industrial applications. The system includes adjustable grinding chambers, variable speed controls, and integrated screening systems to achieve precise size requirements. With its robust design and advanced engineering, this grinder is capable of processing a wide range of biomass materials from soft agricultural residues to harder wood materials.
Applications
Technical Specifications
Detailed technical specifications and performance data
| Model | Power (HP) | Capacity (kg/hr) | Rotor Diameter | Screen Size | Rotor Speed |
|---|---|---|---|---|---|
| SRE-RG-800 | 30 HP | 400 - 800 kg/hr | 800mm | 3-15mm | 600-800 RPM |
| SRE-RG-1000 | 45 HP | 600 - 1200 kg/hr | 1000mm | 3-15mm | 500-700 RPM |
| SRE-RG-1200 | 60 HP | 800 - 1500 kg/hr | 1200mm | 3-15mm | 450-600 RPM |
| SRE-RG-1500 | 85 HP | 1200 - 2000 kg/hr | 1500mm | 3-15mm | 400-550 RPM |
Raw Material Requirements
Input material specifications for optimal performance
Key Advantages
Why choose this equipment for your biomass processing needs
Rotary grinding action produces uniform particle size with minimal fines
Heavy-duty construction ensures reliable operation in demanding applications
Adjustable screen system allows precise control of output particle size
Variable speed control optimizes grinding performance for different materials
Low maintenance design with easily replaceable wear components
Energy-efficient operation reduces power consumption and operating costs
Advanced safety systems protect operators and equipment from damage
Versatile design processes various biomass types with consistent results
Precision engineering minimizes vibration and noise during operation
Integrated dust collection maintains clean working environment
