Mustard Husk Pellet Production
Transform mustard husk into valuable pellet material with our efficient processing solutions. Our system provides sustainable use of agricultural residue, contributing to circular economy and reducing reliance on conventional materials.
Every Raw Material Needs Different Machines
Depending upon its size, shape and moisture. Each material needs to be hammered/powdered and dried up to 10-15% moisture to make pellets from it. To decide the machine, one needs to decide his raw material.
Mustard Husk
Transform mustard husk into valuable pellet material with our efficient processing solutions. Our system provides sustainable use of agricultural residue, contributing to circular economy and reducing reliance on conventional materials.
Process
Since Rice Husk is already small in size and dry, no preprocessing is required for it. It can be directly feed into pellet machine.

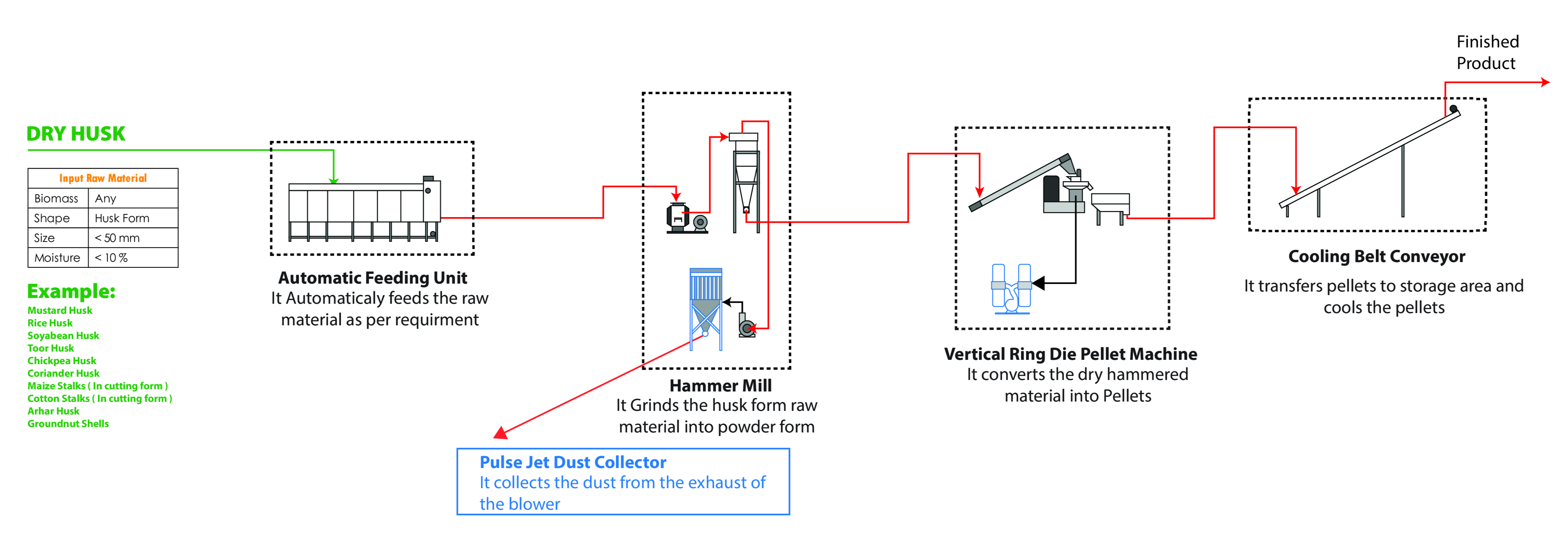

Machine Needed
Automatic Feeding Unit
Power & Capacity
| Model | Power (HP) | Capacity (Kg/hr) | ||||
|---|---|---|---|---|---|---|
| SRE-F2000 | 11 | 2000-2500 | ||||
Input Raw Material
| Property | Specification |
|---|---|
| Biomass: | Any |
| Shape: | Husk or chips |
| Size: | < 50 mm |
| Moisture: | < 30 % |
Hammer Mill
Power & Capacity
| Model | Power (HP) | Capacity (Kg/hr) | ||||
|---|---|---|---|---|---|---|
| 4mm | 6mm | 8mm | ||||
| SRE-G2400 | 78 | 1000 - 1500 | 1500 - 2000 | 2000 - 2500 | ||
| SRE-G3000 | 98 | 1500 - 2000 | 2000 - 2500 | 2500 - 3000 | ||
| SRE-G3000 | 123 | 3000 - 3500 | 3000 - 3500 | 3500 - 4000 | ||
Input Raw Material
| Property | Specification |
|---|---|
| Biomass: | Any |
| Shape: | Husk or chips |
| Size: | < 50 mm |
| Moisture: | < 20 % |
Vertical Ring Die Pellet Machine
Power & Capacity
| Model | Power (HP) | Capacity (Kg/hr) | ||||
|---|---|---|---|---|---|---|
| SRDP-560 | 123 | 900 - 1200 | ||||
| SRDP-560P | 185 | 1500 - 2000 | ||||
| SRDP-850 | 307 | 2000 - 3000 | ||||
| SRDP-850P | 345 | 2500 - 3500 | ||||
Input Raw Material
| Property | Specification |
|---|---|
| Biomass: | Any |
| Shape: | Powder |
| Size: | < 8 mm |
| Moisture: | < 12 % |
Need help selecting the right model for your production needs?
Request Technical Consultation
