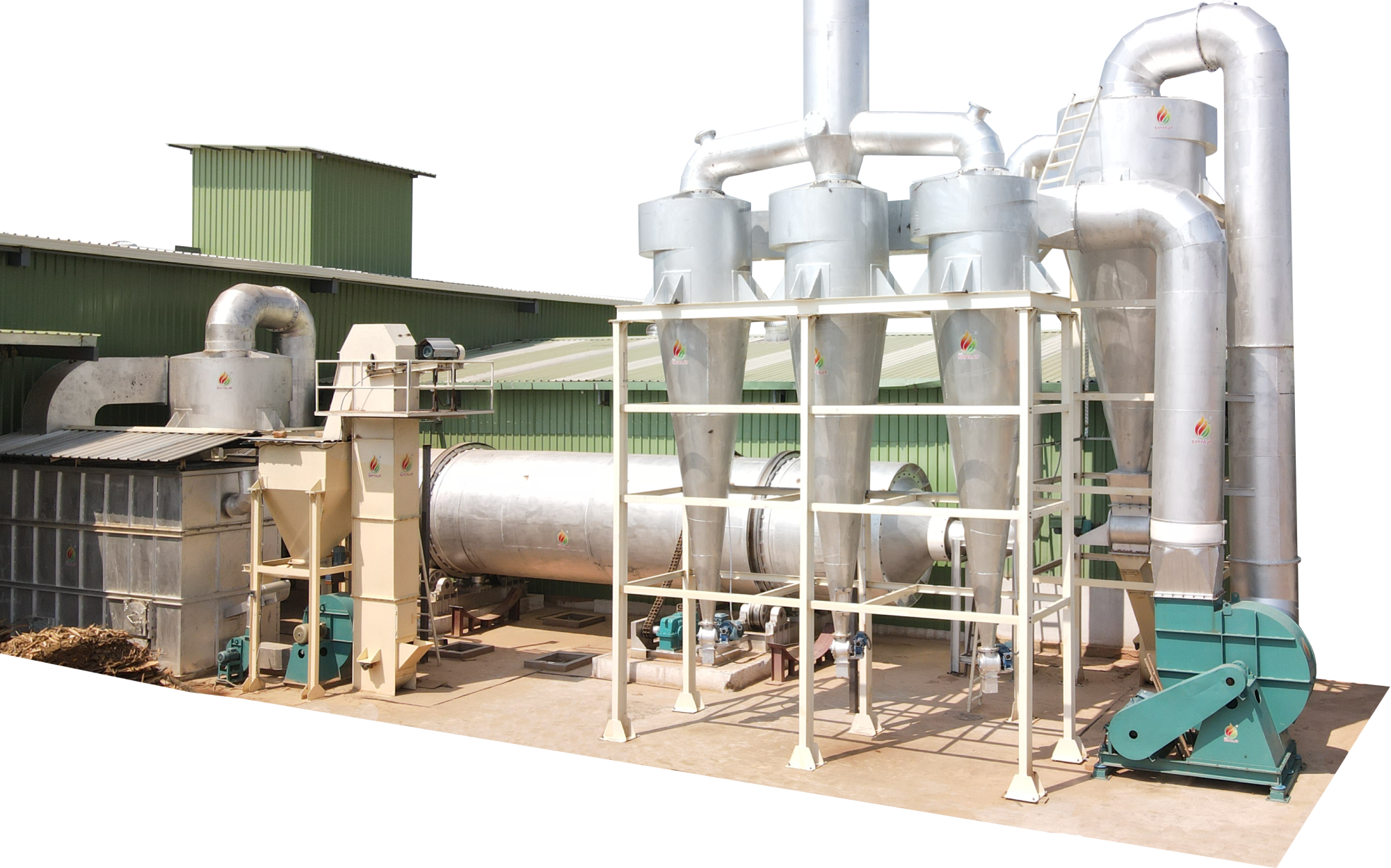

Rotary Drum Dryer
Large-capacity continuous drying solution with rotating drum design for efficient moisture removal from biomass materials
Key Features
- Large rotating drum design
- Internal lifting flights
- Temperature control system
- Continuous feed mechanism
- Insulated chamber construction
- Automated control panel
- Safety monitoring systems
- Dust collection integration
Product Overview
The Rotary Drum Dryer is a high-capacity continuous drying system designed for efficient moisture removal from various biomass materials. This advanced drying system features a large rotating cylindrical drum equipped with internal lifting flights that ensure optimal material mixing and heat transfer. The drum rotates at a controlled speed while heated air flows through the system, providing uniform drying conditions throughout the process. The system includes sophisticated temperature control, material feed regulation, and moisture monitoring systems to maintain consistent output quality. Built with heavy-duty steel construction and insulated chambers, the Rotary Drum Dryer provides excellent thermal efficiency while minimizing heat loss. The system's continuous operation capability makes it ideal for large-scale biomass processing facilities requiring consistent, high-volume drying performance. Advanced safety features and automated controls ensure safe operation while minimizing operator intervention.
Applications
Technical Specifications
Detailed technical specifications and performance data
| Model | Power (HP) | Capacity (kg/hr) | Drum Diameter | Drum Length | drying Temp |
|---|---|---|---|---|---|
| SRE-RDD-1.5x15 | 40 HP | 800 - 1500 kg/hr | 1.5m | 15m | 150-300°C |
| SRE-RDD-2x18 | 60 HP | 1500 - 2500 kg/hr | 2m | 18m | 150-350°C |
| SRE-RDD-2.5x20 | 85 HP | 2500 - 3500 kg/hr | 2.5m | 20m | 150-400°C |
| SRE-RDD-3x24 | 120 HP | 3500 - 5000 kg/hr | 3m | 24m | 150-450°C |
Raw Material Requirements
Input material specifications for optimal performance
Key Advantages
Why choose this equipment for your biomass processing needs
Large-capacity continuous operation handles high-volume production requirements
Rotating drum with lifting flights ensures uniform heat distribution and mixing
Efficient thermal design minimizes energy consumption and operating costs
Continuous processing eliminates batch limitations and increases productivity
Advanced temperature control prevents overheating and material degradation
Robust construction withstands harsh industrial conditions and heavy usage
Automated controls reduce operator intervention and ensure consistent results
Versatile design handles various biomass types and moisture contents
Integrated safety systems protect equipment and ensure operator safety
Low maintenance requirements with easily accessible service points
